The Massachusetts Bay Technologies MLD series limiter diodes are specifically processed PIN diodes designed for use in passive or active limiters over the entire range of frequencies from 100 MHz to beyond 20 GHz. The MLD series limiter diodes are offered for flexibility in design of low (lowest VB, fastest turn on time), medium and high (highest VB, slowest turn on time) power limiters.


The MLD series limiters are for use in waveguides, coax, microstrip or stripline. Single or cascade devices may be used depending on power levels.


Available in a wide range of package styles as well as chip form.

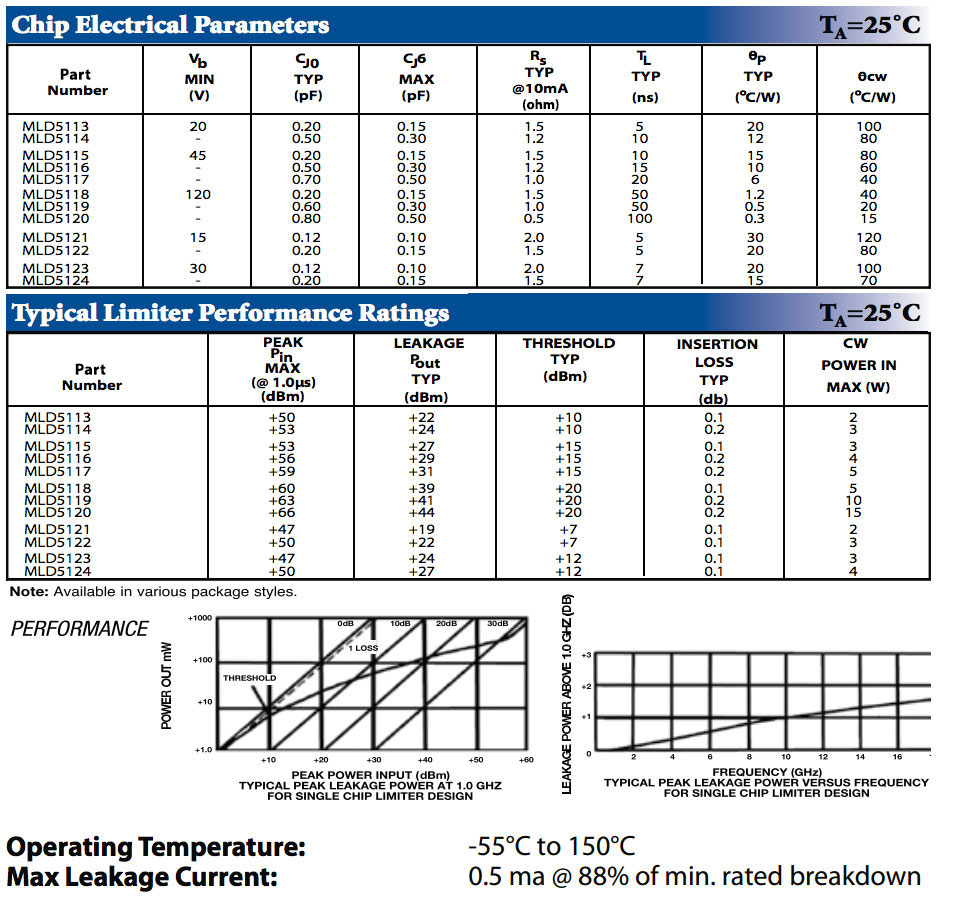

Typical Performance
