MULTIPLIER & STEP RECOVERY DIODES

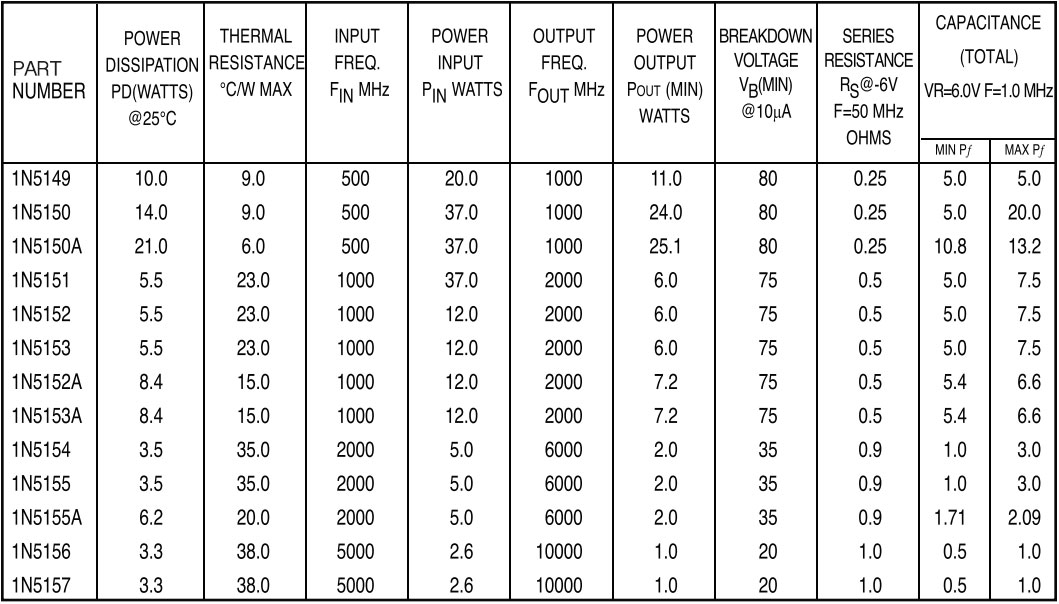

Silicon Multiplier Diodes

Description

The Massachusetts Bay Technologies MPD series of silicon multiplier diodes are designed for efficient frequency conversion at output frequencies 150 MHz to 10 GHz. These diodes are intended for use in doublers or triplers and also for high power applications.

Applications

These series of Varactor diodes are intended for use in multipliers specifically designed transmitters for communication and telemetry applications.

Packaging

Available in a wide range of package styles as well as chip form.

Maximum Ratings

Storage Temperature:

-65C to +200C

Operating Temperature:

-55C to +150C



STEP RECOVERY DIODES

Packaging

Available in a wide range of package styles as well as chip form.

Typical Performance


Step Recovery Diodes: MSR

Description

Typical Performance Description The Massachusetts Bay Technologies MSR series of Step Recovery Diodes are designed for use in low and moderate power multipliers with output frequencies of up to 20 GHz. They are also useful as efficient moderate power X2X4 multipliers. MBT series of higher power step recovery diodes are normally useful in multipliers with multiplication ratios of X2 to X6 times. Diodes are available in various capacitance ranges for each of the 4 voltage ratings. These diodes represent the lowest transition time (snap time) available for each voltage rating.

Applications

This series of Step Recovery Diodes are used as harmonic generators for all orders of multiplication, X2 through X 20, for both narrow and wide bandwidths. Applications include VCO’s, up converters, comb generators and frequency synthesizers.
