TUNING VARACTORS
30-VOLT ABRUPT TUNING VARACTORS
Tuning Varactors: MBT 3000 Series
Description
The Massachusetts Bay Technologies MBT3000’s series Tuning Varactors are silicon abrupt junction devices. Each device has been designed to obtain the highest Q and lowest resistance possible in 30 volt tuning diodes. Each device in this series has a high density silicon dioxide passivation which results in exceptionally low leakage currents at higher temperatures.
Applications
The MBT3000 series of silicon tuning diodes are used for both narrow and wideband tuning. They are suited for frequency tuning applications through KU band. The MBT3000 series are used in phase shifters, voltage controlled oscillators and frequency synthesizers.
Standard capacitance tolerance is ±10%. Diodes can be optimized for custom electrical or mechanical specification upon request.
Features
Low Series Resistance – High Q
Extensive Selection of Capacitance Values Packaging
Packaging
Available in a wide Range of Case Styles as well as Chip Form

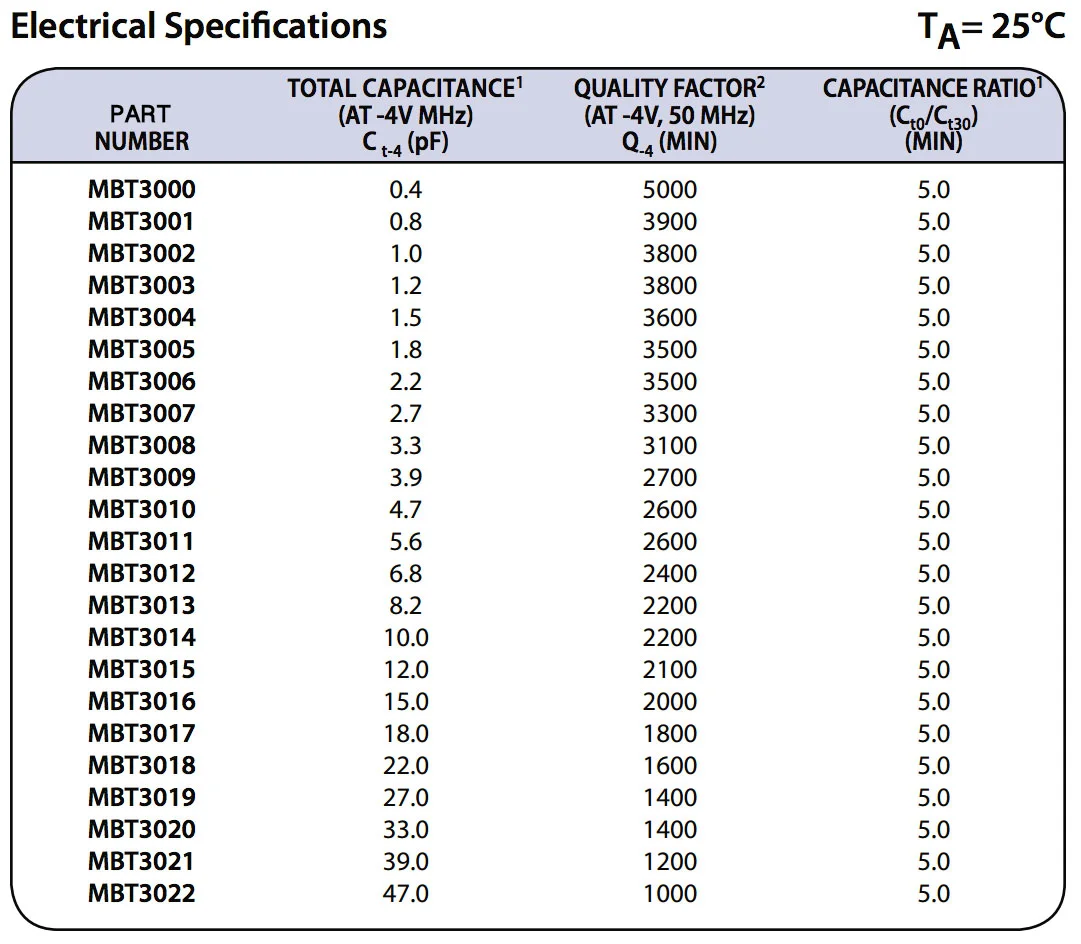

Typical Performance
30-VOLT ABRUPT TUNING VARACTORS
Tuning Varactors: MBT 3000 Series
Description
The Massachusetts Bay Technologies MBT3000’s series Tuning Varactors are silicon abrupt junction devices. Each device has been designed to obtain the highest Q and lowest resistance possible in 30 volt tuning diodes. Each device in this series has a high density silicon dioxide passivation which results in exceptionally low leakage currents at higher temperatures.
Applications
The MBT3000 series of silicon tuning diodes are used for both narrow and wideband tuning. They are suited for frequency tuning applications through KU band. The MBT3000 series are used in phase shifters, voltage controlled oscillators and frequency synthesizers.
Standard capacitance tolerance is ±10%. Diodes can be optimized for custom electrical or mechanical specification upon request.
