Tuning Varactors: MBT 3000 Series

Description

The Massachusetts Bay Technologies MBT3000’s series Tuning Varactors are silicon abrupt junction devices. Each device has been designed to obtain the highest Q and lowest resistance possible in 30 volt tuning diodes. Each device in this series has a high density silicon dioxide passivation which results in exceptionally low leakage currents at higher temperatures.

Applications

The MBT3000 series of silicon tuning diodes are used for both narrow and wideband tuning. They are suited for frequency tuning applications through KU band. The MBT3000 series are used in phase shifters, voltage controlled oscillators and frequency synthesizers.
Standard capacitance tolerance is ±10%. Diodes can be optimized for custom electrical or mechanical specification upon request.

Features

Low Series Resistance – High Q
Extensive Selection of Capacitance Values Packaging

Packaging

Available in a wide Range of Case Styles as well as Chip Form

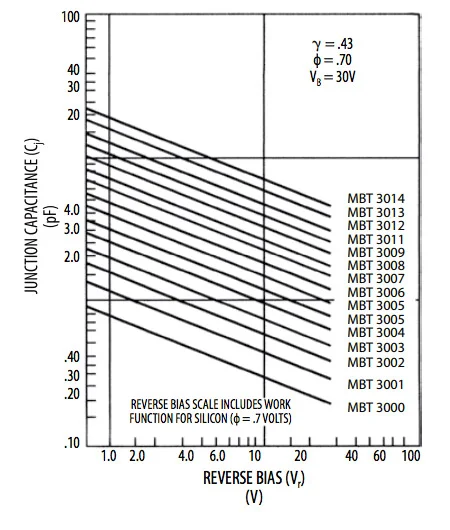

Typical Performance

45-VOLT ABRUPT TUNING VARACTORS

Tuning Varactors: MBT 4500 Series

Description

The Massachusetts Bay Technologies MBT4500’s series Tuning Varactors are silicon abrupt junction devices. Each device has been designed to obtain the highest Q and lowest resistance possible in 45 volt tuning diodes. Each device in this series has a high density silicon dioxide passivation which results in exceptionally low leakage currents at higher temperatures.

Applications

The MBT4500 series of silicon tuning diodes are used for both narrow and wideband tuning. They are suited for frequency tuning applications through KU band. The MBT4500 series are used in phase shifters, voltage controlled oscillators and frequency synthesizers.

Standard capacitance tolerance is ±10%. Diodes can be optimized for custom electrical or mechanical specifications upon request.

Features

Low Series Resistance – High Q
Extensive Selection of Capacitance Values Packaging

Packaging

Available in a wide Range of Case Styles as well as Chip Form

Typical Performance

60-VOLT ABRUPT TUNING VARACTORS

Tuning Varactors: MBT 6000 Series

Description

The Massachusetts Bay Technologies MBT6000’s series Tuning Varactors are silicon abrupt junction devices. Each device has been designed to obtain the highest Q and lowest resistance possible in 60 volt tuning diodes. Each device in this series has a high density silicon dioxide passivation which results in exceptionally low leakage currents at higher temperatures.

Applications

The MBT6000 series of silicon tuning diodes are used for both narrow and wideband tuning. They are suited for frequency tuning applications through KU band. The MBT6000 series are used in phase shifters, voltage controlled oscillators and frequency synthesizers.

Standard capacitance tolerance is ±10%. Diodes can be optimized for custom electrical or mechanical specification upon request.

Features

Low Series Resistance – High Q
Extensive Selection of Capacitance Values Packaging
Available in a wide Range of Case Styles as well as Chip Form

Packaging

Available in a wide range of case styles as well as chip form

Typical Performance

90-VOLT ABRUPT TUNING VARACTORS

Tuning Varactors: MBT 9000 Series

Description

The Massachusetts Bay Technologies MBT9000’s series Tuning Varactors are silicon abrupt junction devices. Each device has been designed to obtain the highest Q and lowest resistance possible in 90 volt tuning diodes. Each device in this series has a high density silicon dioxide passivation which results in exceptionally low leakage currents at higher temperatures.

Applications

The MBT9000 series of silicon tuning diodes are used for both narrow and wideband tuning. They are suited for frequency tuning applications through KU band. The MBT9000 series are used in phase shifters, voltage controlled oscillators and frequency synthesizers.

Standard capacitance tolerance is ±10%. Diodes can be optimized for custom electrical or mechanical specification upon request.

Features

Low Series Resistance  High Q
Extensive Selection of Capacitance Values Packaging
Available in a wide Range of Case Styles as well as Chip Form

Packaging

Available in a wide Range of Case Styles as well as Chip Form

Typical Performance
